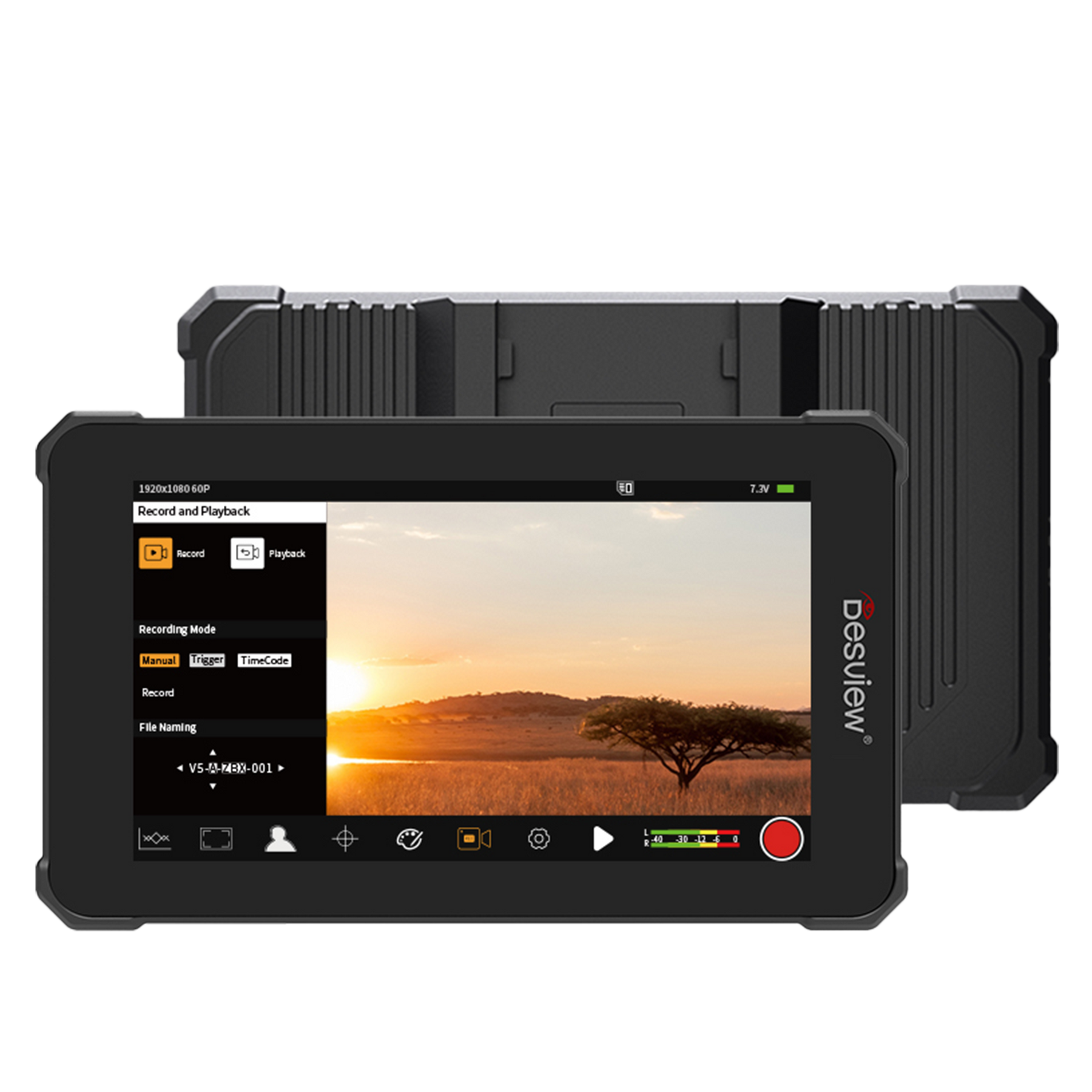

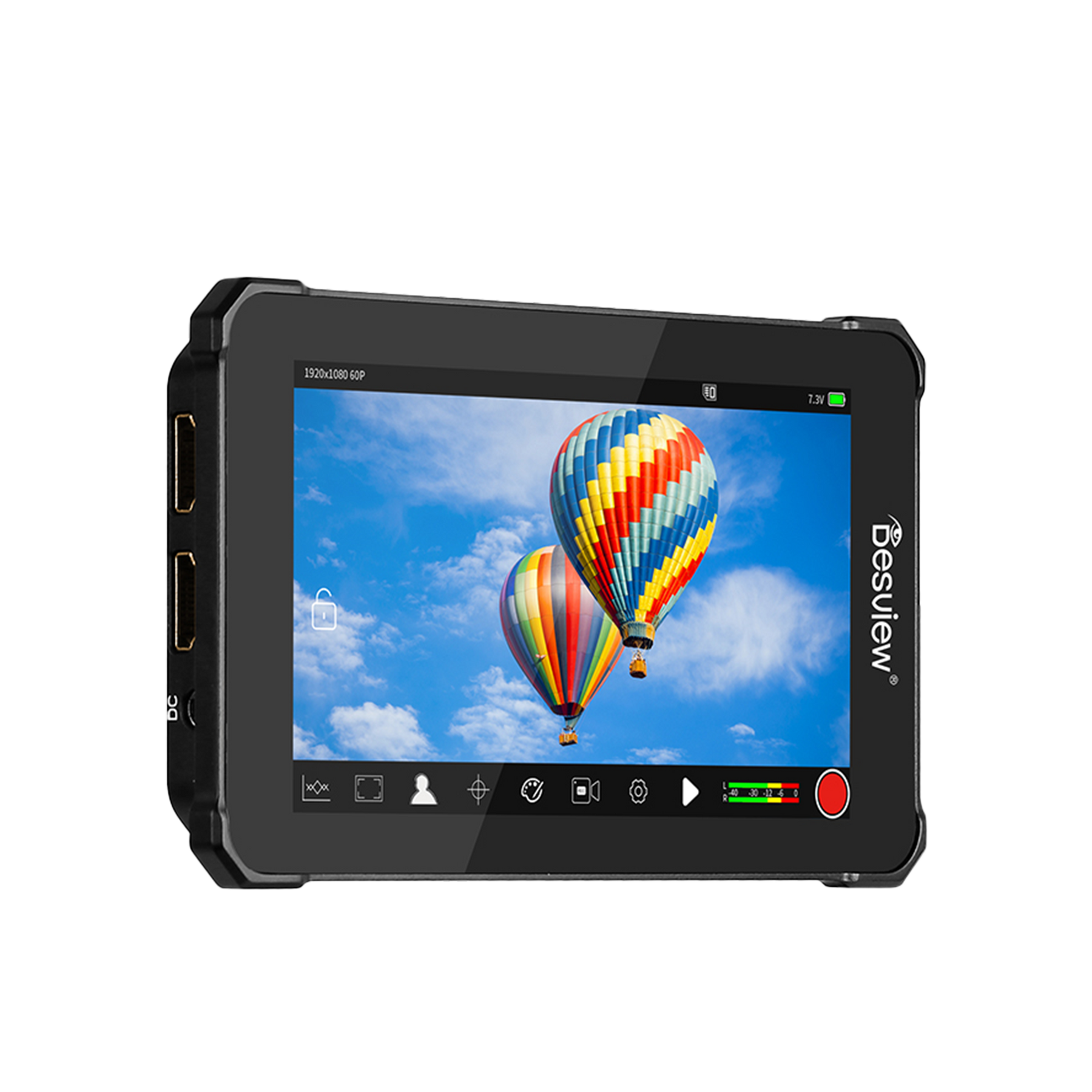

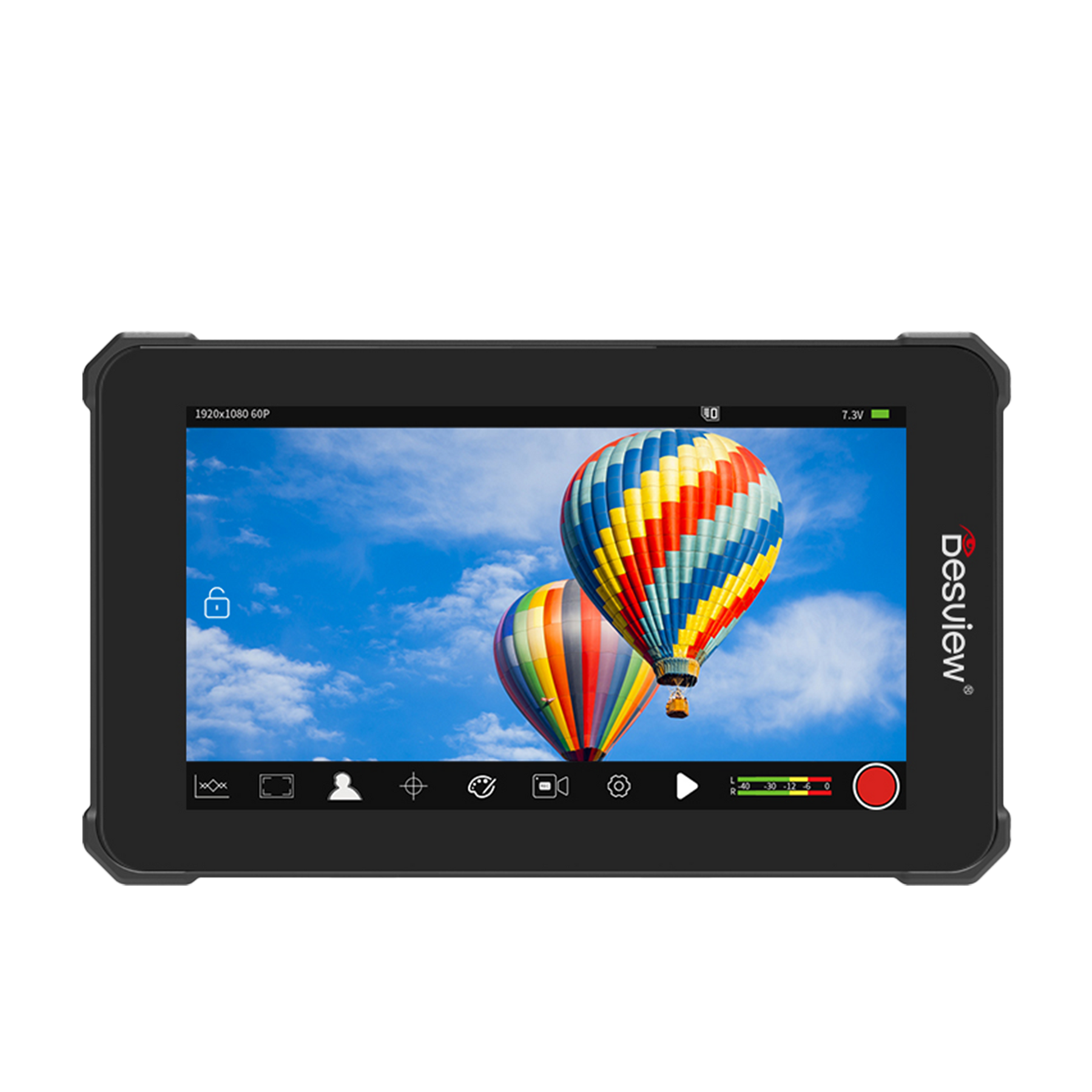

Desview V5 - Field monitor with recorder function
If you've all too often found your camera's built-in screen to be too small, then this is the time of small screens with the Desview Camera Monitor V5 now over.
Camera monitor with 5.5 inch touch screen display
The external camera monitor has a Screen diagonal of 5.5 inches and the operation of monitors is done easily and conveniently via touch screen, so you can easily tap through the menu.
Built-in recording capabilities with 1080p resolution to MP4
The special advantage of Desview V5 lies in the built Recording function of the monitor. That's how he can field monitor shots with one Full HD resolution in MP4 directly on an SD memory card save and also play back.
Full HD resolution and brightness of 2,800 nits
In addition, the small camera monitor over a Full HD resolution and with the Brightness of 2,800 nits you will have no problems seeing all the contents of the monitor and operating it, even in strong sunlight.

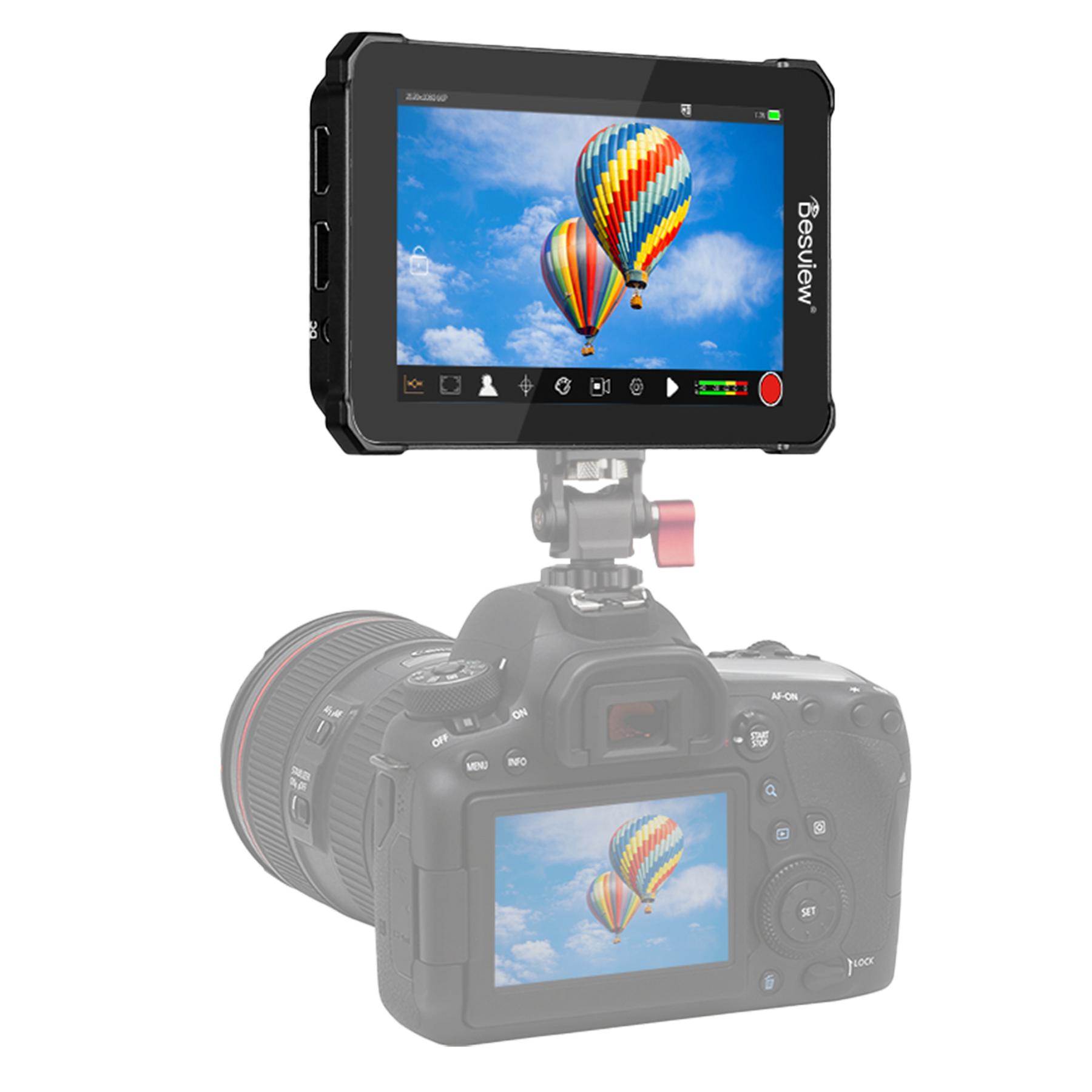

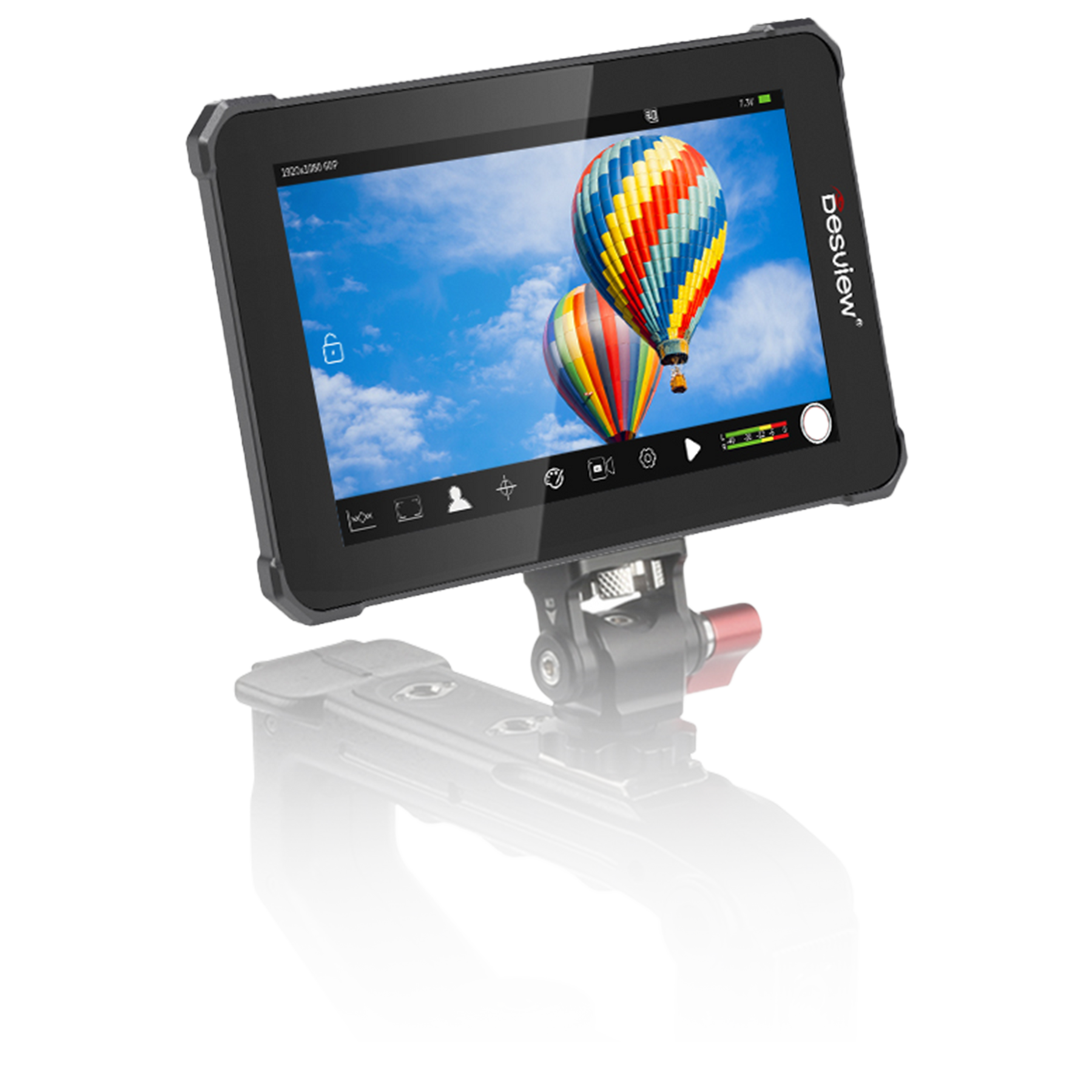

HDMI input and output with 4K support, 1/4" connectors and cold shoe adapter
by one each HDMI input and output on the monitor Can you Videos in 4K For example, play back from your camera through the monitor on another device. The integrated 1/4 inch connections on the side and bottom of the monitor and the supplied cold shoe adapter also ensure quick and secure attachment in a horizontal or vertical position directly on your camera or on a tripod.
Touchscreen monitor with many functions
The Desview Camera Monitor V5 has numerous useful functions that are very helpful for photo and video shoots in the studio or on location.
With the „Zebra featuren for example, you can see which areas are overexposed, giving you a better idea of outlines and light and dark areas.
The „False color functionn allows you to display overexposed areas in dark red and thus correct them.
The „Center Cross functionn can be adjusted to better adjust aspect ratios.
With the Aspect ratio functiono“ you can see which area will be in the picture later and with video editing software you can then transfer the photo to the format later, whereas the Safe area functiona“ shows which area must be in the picture so that the recordings can later be transferred to other formats.
through the Focus peaking functiong“ Sharpening and blurring are more visible in the image, colors of the focus peaking can be set in four different colors (red, green, blue and grey) and intensities can be set to different strengths.n.
Also „waveform“, i.e. controlling the luminance level, and „grid,, i.e. the division into individual image areas, are among other helpful functions with which the Camera Monitor V5 Is provided.
The rash and recording of audio can be done with the Audio meters functionr“ are displayed and the Field Monitor has sound playback. You can also use the supplied USB stick to quickly and easily load LUTs onto the monitor, i.e. preset sets for colour, brightness, saturation and more.
Note: Battery shown not included! (Available seperately)
Battery operation possible with NP-F type batteries
The Camera Monitor V5 is compatible with ours NP-F type batteries and our battery charger of type NP-F.
Video about the Field Monitor V5
Technical data
screen size: | 5.5" |
Resolution: | 1920x1080 |
Brightness: | 2,800 nits |
Contrast: | 1,000:1 |
viewing angle: | 178 ° |
Backlight: | LEDs |
Power supply: | DC 6.5 - 16.8V / 12W |
Connections: | DC connection (input / output), HDMI connection (input / output), , USB-C connection, 3.5 mm jack connection, 2 x 1/4" connection, cold shoe connection, SD memory card slot |
Material: | aluminum |
Dimensions: | 15.4 x 9.2 x 3 cm |
Weight: | 320g |
scope of delivery
- 1 x monitor
- 1x SD memory card
- 1x microSD memory card adapter
- 1x cold shoe adapter
- 1x micro HDMI cable
- 1x Mini HDMI Cable
- 1x D-Tap cable
- 2x screws
- 1x Allen key
- 1x cleaning cloth
